Oil Capacitor

  • Voltage Parallel
Voltage Parallel

Voltage Parallel

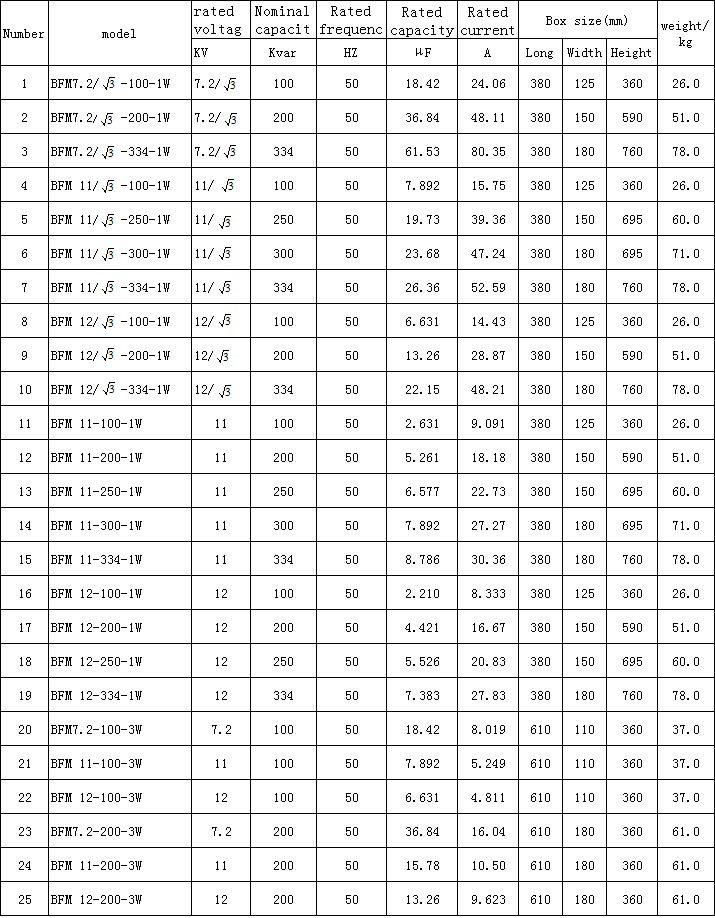

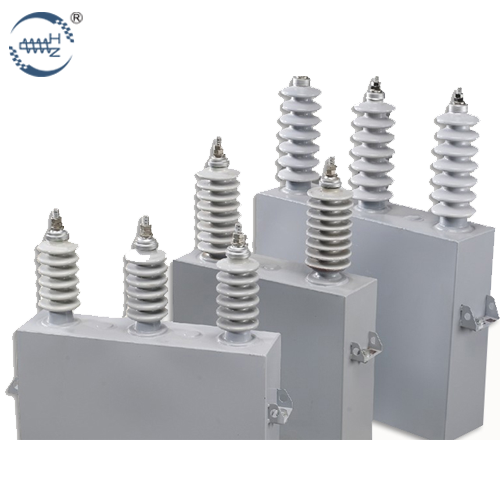

BFM, BAM summary of high voltage parallel capacitor

High voltage parallel capacitor is mainly suitable for (50 or 60 hz) power frequency ac power system, is used to improve the power factor, improve the quality of power grid, reduce line losses. BFM, RAM of high voltage parallel capacitor performance character and GB/T11024.1-2001 the nominal voltage of 1 kv ac power system using parallel container ", IEC60871-1 (1997). Products should be in place for altitude is not more than 1000 m installation, the installation place no violent mechanical vibration, harmful gases and vapors, conductivity and explosive dust. Products using the environment temperature in the range of 25 ~ + 40 ℃.
