RF Power Ceramic Capacitor

  • TWXF110250 Water-Cooled High Power Ceramic Capacitor
  • TWXF110250 Water-Cooled High Power Ceramic Capacitor
  • TWXF110250 Water-Cooled High Power Ceramic Capacitor
  • TWXF110250 Water-Cooled High Power Ceramic Capacitor
  • TWXF110250 Water-Cooled High Power Ceramic Capacitor
  • TWXF110250 Water-Cooled High Power Ceramic Capacitor
TWXF110250 Water-Cooled High Power Ceramic Capacitor TWXF110250 Water-Cooled High Power Ceramic Capacitor TWXF110250 Water-Cooled High Power Ceramic Capacitor TWXF110250 Water-Cooled High Power Ceramic Capacitor TWXF110250 Water-Cooled High Power Ceramic Capacitor TWXF110250 Water-Cooled High Power Ceramic Capacitor

TWXF110250 Water-Cooled High Power Ceramic Capacitor

  • Description: Water-Cooled High Power Ceramic Capacitor TWXF110250
  • INQUIRY   EMAIL

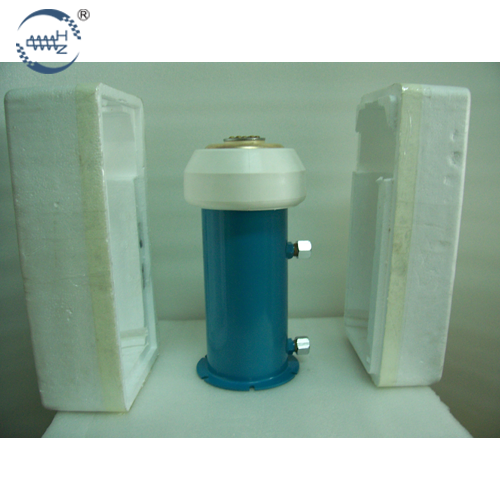

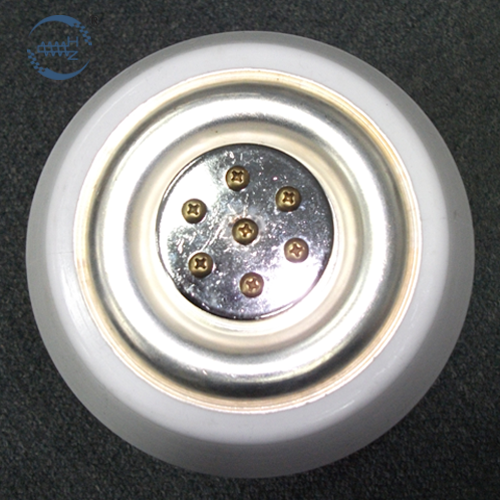

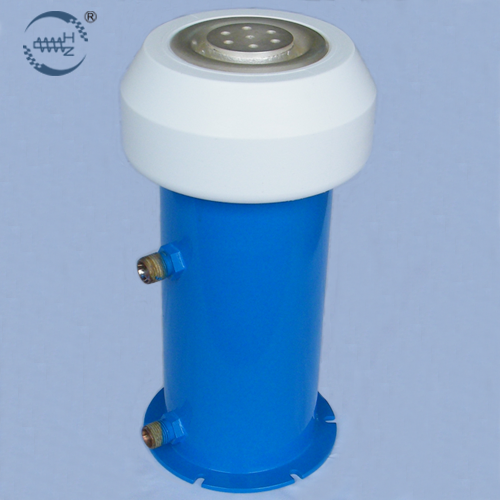

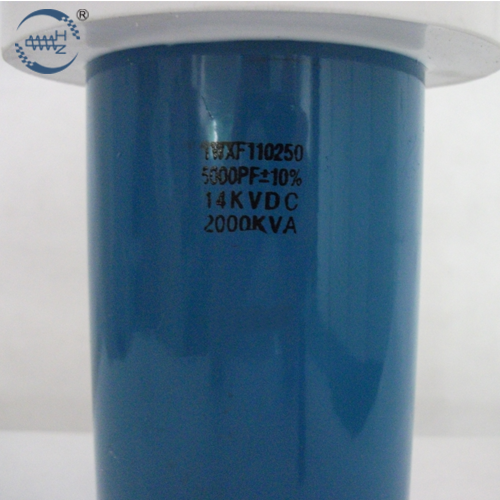

1. Product Name:Water-Cooled High Power Ceramic Capacitor

2. Model: CCGSF-1

The capacitor is used for high power wireless sending set,tank circuit,coupling,filter and feed circuit of middle and high frequency electronic equipment.


We manufacture and export the following all models.Water-Cooled High Power Ceramic Capacitor CCGSF-1(600PF,20KV,2000kVA)

High power ceramic capacitor technical parameters:
1.Typical dissipation factor: ≤0.0008;
2.Volume resistivity: ≥10000MΩ;
3. Permissible variation of rated capacitance: K(+/-10%);
4.Temperature range: -40/+85;
5. Rated temperature: +85ºC;
6.Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.
