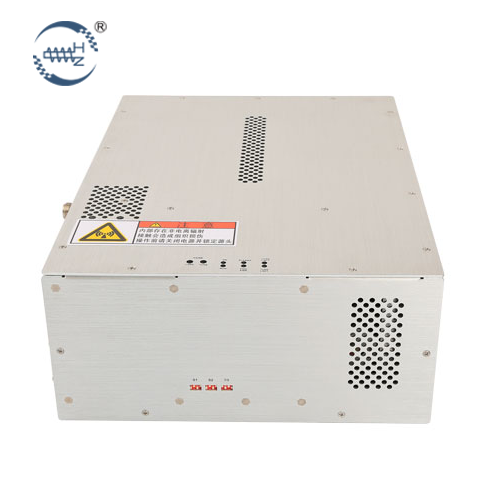

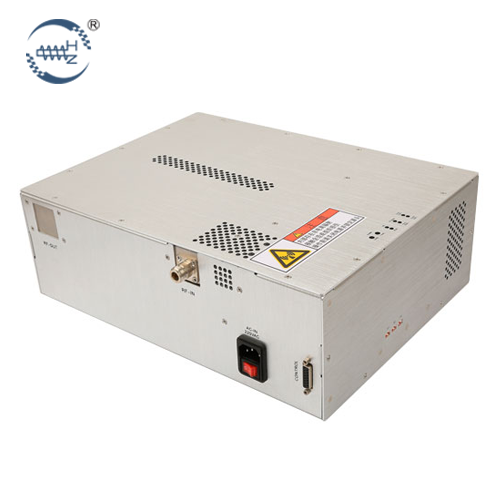

300W Automatic Match

  • Description: The matcher is completely independent of the power supply and can be matched with many brands of RF power supply such as AE, COMDEL, MKS on the market. The detection module of the RF system can detect
  • INQUIRY   EMAIL

Product parameters:


Frequency: 13.56 MHz 27.12 MHz 40.68 MHz (+0.005%)


Transmission power: 300W


Normal Operating Reflection Power: <3W


Transmission power: > 90%


Load impedance: 50 Ohm


Control mode: automatic matching control, switching manual control (power communication)


Matching time: 3-5S


Matched Real Part Range: 0-80 Ohm


Matching imaginary part range: (-j200) - (+j100)


Input RF interface: 50 Ohm, N-type head (customizable according to customer requirements)


Output RF interface: 50 Ohm, UHF head (customizable according to customer requirements)


Cooling mode: forced air cooling


Weight: 5.5KG

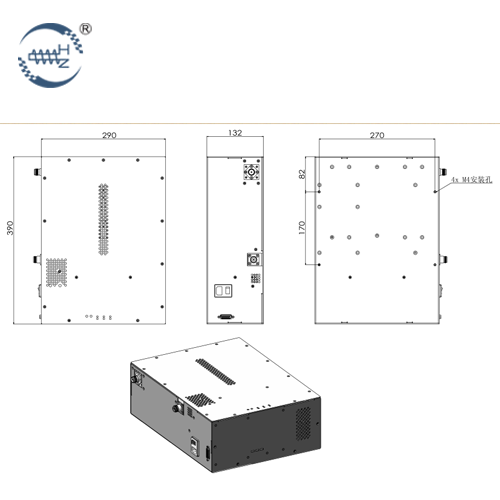

Dimensions (mm): 290 (W)*390 (D)*132 (H)
