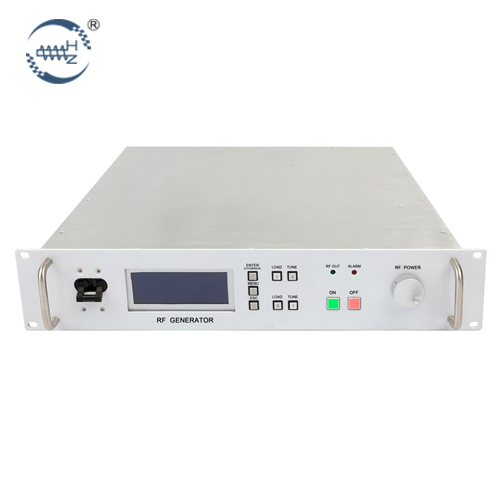

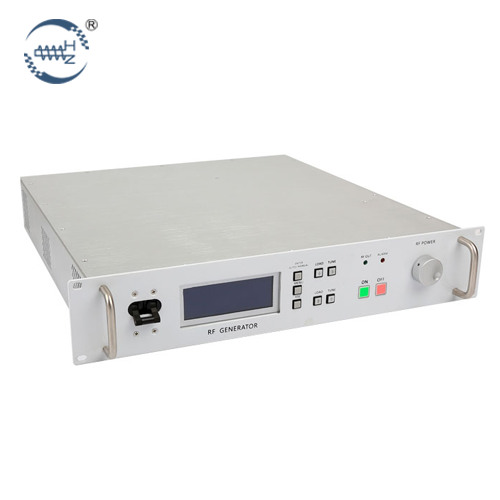

2000W ICP RF Power Generator

  • Description: Standard series of products, using 2U standard chassis, 192 x 64 pixel LCD display, small size, light weight, simple and intuitive operation, the use of industry-wide external communication interface,
  • INQUIRY   EMAIL

Product parameters:


Frequency: 13.56 MHz 27.12 MHz 40.68 MHz (+0.005%)


Rated power: 2000W


Radio Frequency Power Output Range: 20-2000W


Power stability: +0.1%


Reflection power limit: 400W


Load impedance: 50 Ohm


Radio Frequency Output Connectors: 50 Ohm, 7/16 Nuts


Harmonic component: <50dBc


Distortion: <60dBc


Overall efficiency: > 70%


Power supply voltage: single-phase AC 220VAC, frequency 50/60Hz


Cooling mode: water cooling + forced air cooling


External Communication Interface: DB25 Analog Interface, RS485, RS232, Synchronization Function


Screen display: 192 *64 screen, forward power, reverse power, matcher capacitance position, protection status, preset point, bias voltage, alarm content


Whole machine weight: 32KG


Installation: 19 inch standard chassis, 2U height

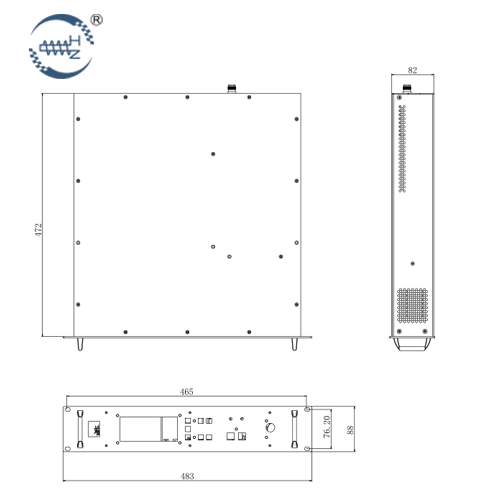

Size of the whole machine: 483(W)*82(H)*472(D)


Other Requirements: Customized to Customer Requirements
