Gas-Filled Relays

  • HZH5-3.5KV DC HV Gas Filled Relay For Capacitor Charging And Discharging

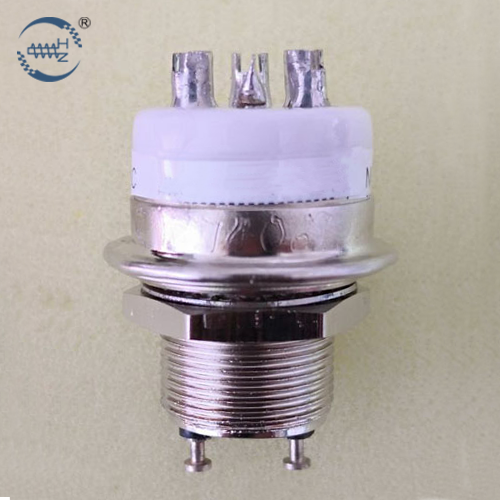

HZH5-3.5KV DC HV Gas Filled Relay For Capacitor Charging And Discharging

HZH5-3.5KV DC HV Gas Filled Relay For Capacitor Charging And Discharging

  • Gas-filled:SF6 GAS Operating Voltage:3.5KV DC
  • Coil Voltage:12V/24V/26.5V Current:8A
  • Contact Arrangement:SPDT Dimension:Φ18.5*H36
  • Mechanical Life:1 Million Weight:28
  • Description: HZH5-3.5KV DC HV Gas Filled Relay For Capacitor Charging And Discharging
  • INQUIRY   EMAIL

Detailed Product Description


HZH5 DC3.5KV SF6 Gas filled Relay excellent for Capacitor charging and discharging ,Coil 12V 24V 26.5V



Test Voltage 5kV
Peak Voltage 3.5kV
Current Carry Amps (RMS) 8amps
Contact Operate Speed 15MS (Milliseconds)
Contact Release Speed 19MS (Milliseconds)
Rated Life Operations 1000,000
Coil Resistance 335 Ohms
Coil Voltage 26.5 VDC
Important Dimensions
Max Length 36mm
Max Diameter 18.5mm
Mounting Flange 16mm
Weight 28 g
Mounting With small diameter flange for mounting through hole, an appropriate sized rubber grommet could be utilized.
Condition New, unused.



HZH5 is similar with GH5 of gigavac and KC-5 of Kilovac.


Typical application for Relays:
vacuum relays play a vital role when high power and low RF losses are required.
• Vapor Deposition For Semiconductor Wafer Processing
• Radio Antenna Tuning Matching Circuits
• T/R Switches
• Pulse Forming Networks
• Ion Implant
• TWT Power Supplies
• MRI Power Supplies
• Radar Systems
• Security Screening Systems
DC and AC Power Switching Applications
• Intrinsically Safe, Explosion Proof Applications
• Cell Site Power Systems
• Power and Battery Back-Up Systems
• Solar and Other Alternative Power Systems
• Industrial DC Power Switching
• Trucks, Boats, Mining Equipment, Light Rail, Heavy Equipment, Recreation and Emergency Vehicles
Test Equipment & Instrumentation
Vaccum relays are great for high in-rush and stable leakage current applications, and are the perfect solution for low

leakage and high carry current applications.
• ESD Pulse Forming Equipment
• Hi-pot Testing
• Cable Testing
• Motor Winding Testing
• Megohm Testing
• High Power Lasers
• Power Supply Testing
• Mass Spectrometry
• High Voltage Power Supplies
• Transformer Test Equipment
• Ballast Test Equipment
