Gas-Filled Relays

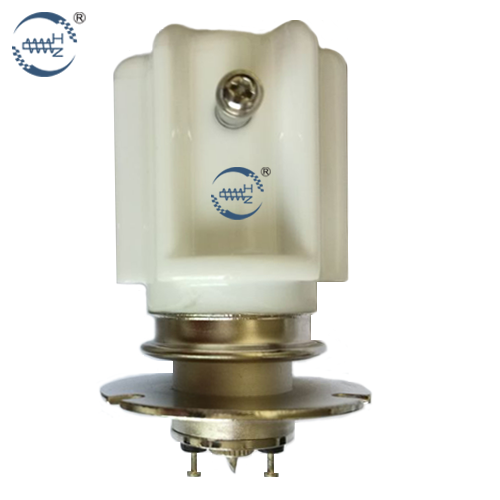

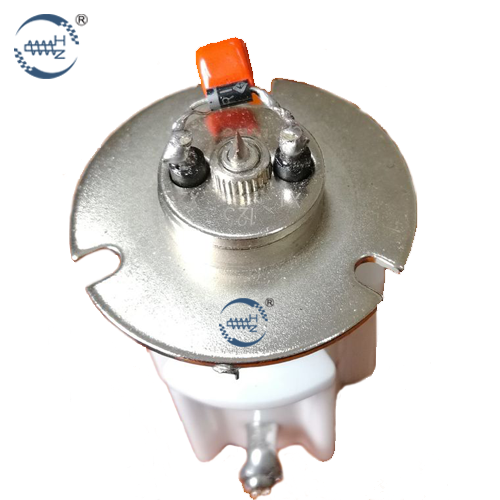

  • JPK-18WF-High Voltage DC25KV SF6 Gas Filled Relay Switch With Coil 12V 24V 26.5V
  • JPK-18WF-High Voltage DC25KV SF6 Gas Filled Relay Switch With Coil 12V 24V 26.5V
JPK-18WF-High Voltage DC25KV SF6 Gas Filled Relay Switch With Coil 12V 24V 26.5VJPK-18WF-High Voltage DC25KV SF6 Gas Filled Relay Switch With Coil 12V 24V 26.5V

JPK-18WF-High Voltage DC25KV SF6 Gas Filled Relay Switch With Coil 12V 24V 26.5V

  • Gas-filled:SF6 GAS Operating Voltage:25KV DC
  • Coil Voltage:12V/24V/26.5V Current:12A
  • Contact Arrangement:SPDT Dimension:Φ36*H65
  • Mechanical Life:1 Million Weight:110
  • Description: JPK-18WF-High Voltage DC25KV SF6 Gas Filled Relay Switch With Coil 12V 24V 26.5V
  • INQUIRY   EMAIL

Detailed Product Description



JPK-18WF DC25KV SF6 Gas filled Relay excellent for Capacitor charging and discharging ,Coil 12V 24V 26.5V



Test Voltage 28kV
Peak Voltage 15kV
Current Carry Amps (RMS) 12amps
Contact Operate Speed 18MS (Milliseconds)
Contact Release Speed 12MS (Milliseconds)
Rated Life Operations 1000,000
Coil Resistance 125 Ohms
Coil Voltage 24 VDC
Important Dimensions
Max Length 65mm
Max Diameter 36mm
Mounting Flange 41.4mm
Weight 110 g
Mounting With small diameter flange for mounting through hole, an appropriate sized rubber grommet could be utilized.
Condition New, unused.


Typical application for Relays:
vacuum relays play a vital role when high power and low RF losses are required.
• Vapor Deposition For Semiconductor Wafer Processing
• Radio Antenna Tuning Matching Circuits
• T/R Switches
• Pulse Forming Networks
• Ion Implant
• TWT Power Supplies
• MRI Power Supplies
• Radar Systems
• Security Screening Systems
DC and AC Power Switching Applications
• Intrinsically Safe, Explosion Proof Applications
• Cell Site Power Systems
• Power and Battery Back-Up Systems
• Solar and Other Alternative Power Systems
• Industrial DC Power Switching
• Trucks, Boats, Mining Equipment, Light Rail, Heavy Equipment, Recreation and Emergency Vehicles
Test Equipment & Instrumentation
Vaccum relays are great for high in-rush and stable leakage current applications, and are the perfect solution for low

leakage and high carry current applications.
• ESD Pulse Forming Equipment
• Hi-pot Testing
• Cable Testing
• Motor Winding Testing
• Megohm Testing
• High Power Lasers
• Power Supply Testing
• Mass Spectrometry
• High Voltage Power Supplies
• Transformer Test Equipment
• Ballast Test Equipment
