RF Power Ceramic Capacitor

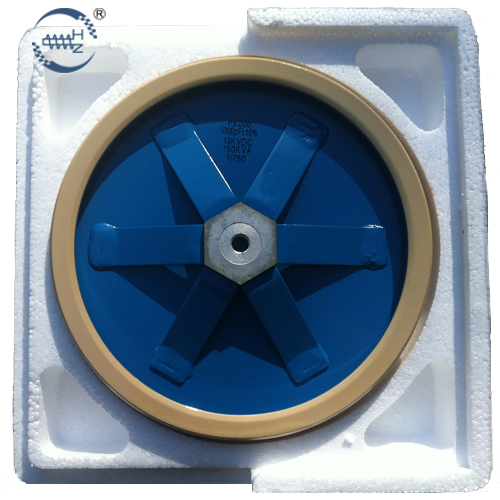

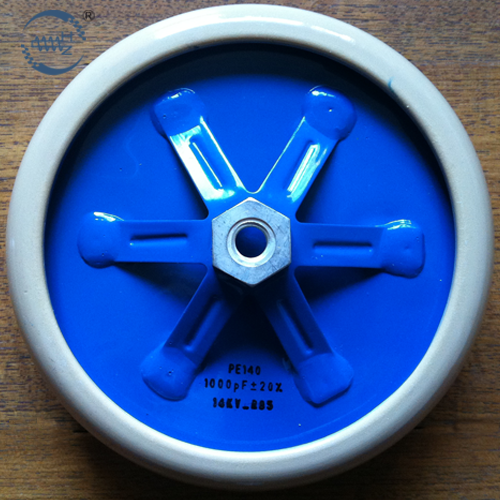

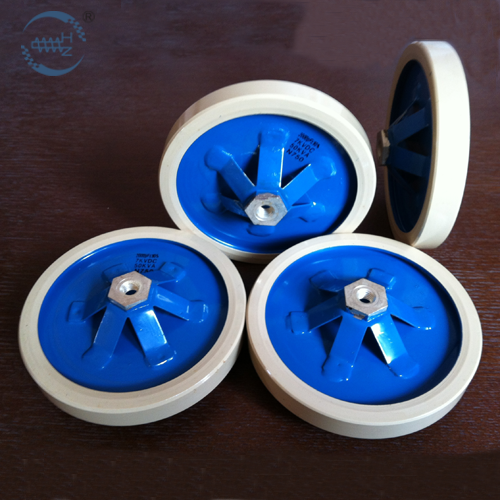

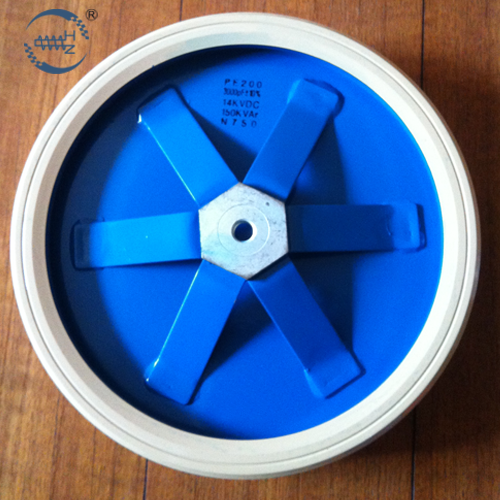

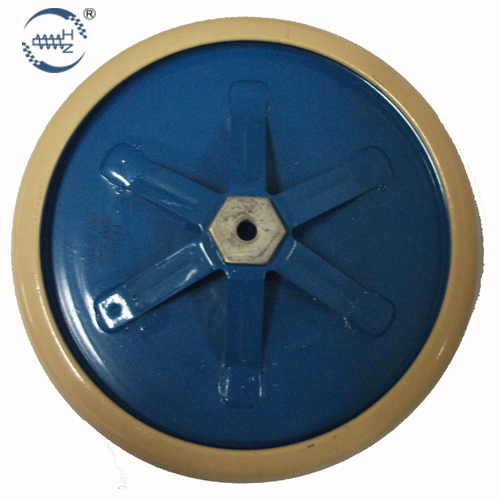

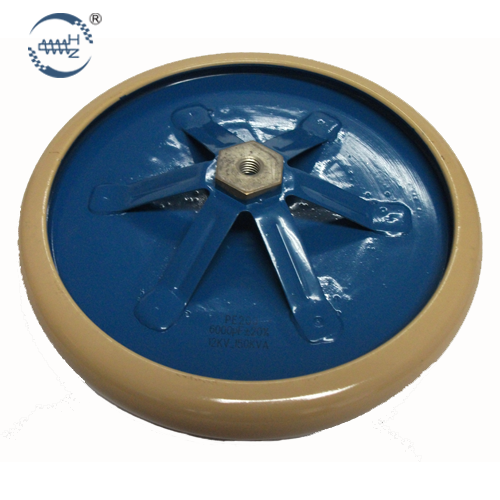

PE100 (400PF, 14KV, 40kVA) Plate Power High Frequency Ceramic Capacitor

PE100 (400PF, 14KV, 40kVA) Plate Power High Frequency Ceramic Capacitor

Description: PE100 (400PF, 14KV, 40kVA) Plate Power High Frequency Ceramic Capacitor
INQUIRY EMAIL

1. Product Name: Plate Power High Frequency Ceramic Capacitor

2. Model: PE100

The capacitor is used for high power wireless sending set,tank circuit,coupling,filter and feed circuit of middle and high frequency electronic equipment.

We manufacture and export the following all models. Plate Power High Frequency Ceramic Capacitor PE100 (400PF, 14KV, 40kVA)

High power ceramic capacitor technical parameters:
1.Typical dissipation factor: ≤0.0008;
2.Volume resistivity: ≥10000MΩ;
3. Permissible variation of rated capacitance: K(+/-10%);
4.Temperature range: -40/+85;
5. Rated temperature: +85ºC;
6.Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.
