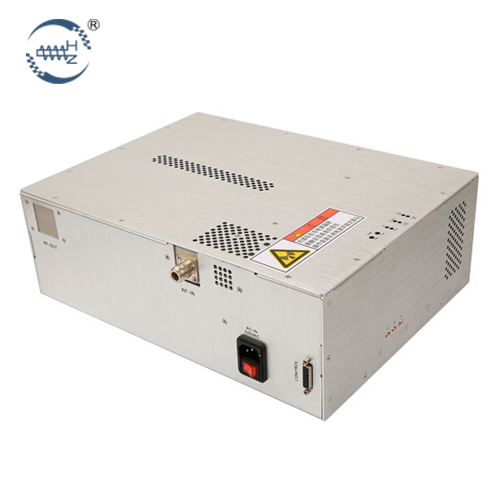

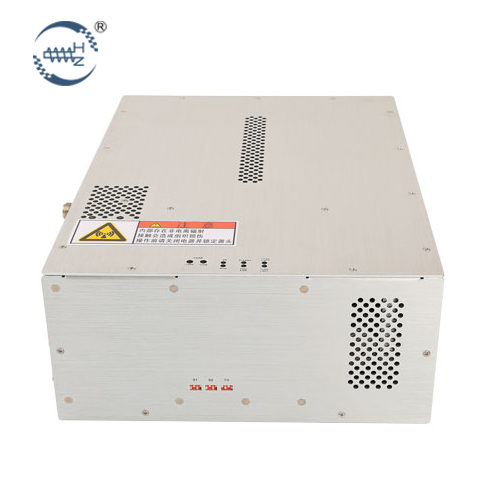

300W Automatic Match for RF Generator

Product parameters:

Frequency: 13.56 MHz 27.12 MHz 40.68 MHz (+0.005%)

Transmission power: 300W

Normal Operating Reflection Power: <3W

Transmission power: > 90%

Load impedance: 50 Ohm

Control mode: automatic matching control, switching manual control (power communication)

Matching time: 3-5S

Matched Real Part Range: 0-80 Ohm

Matching imaginary part range: (-j200) - (+j100)

Input RF interface: 50 Ohm, N-type head (customizable according to customer requirements)

Output RF interface: 50 Ohm, UHF head (customizable according to customer requirements)

Cooling mode: forced air cooling

Weight: 5.5KG

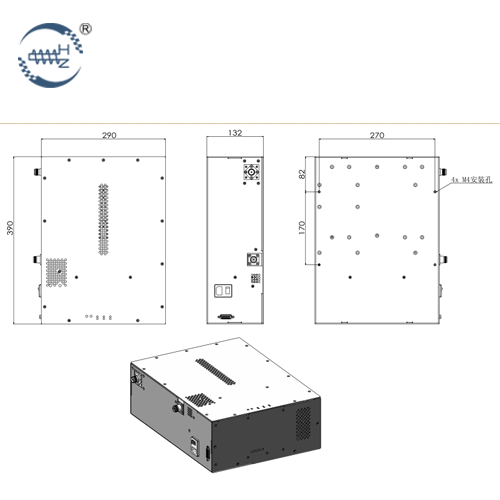

Dimensions (mm): 290 (W)*390 (D)*132 (H)
