RF Power Ceramic Capacitor

  • D140 Board Shape high frequency Ceramic Capacitor
D140 Board Shape high frequency Ceramic Capacitor

D140 Board Shape high frequency Ceramic Capacitor

  • Description: D140 Board Shape high frequency Ceramic Capacitor
  • INQUIRY   EMAIL

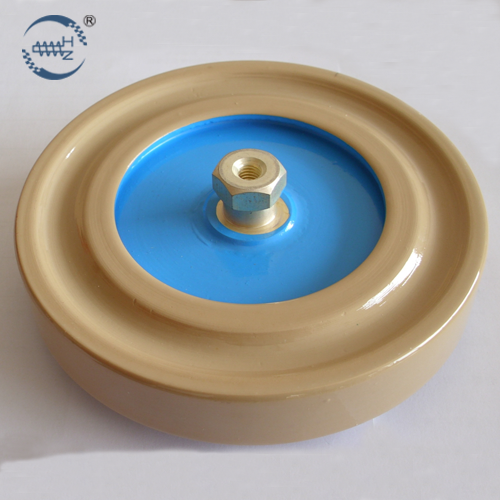

1. Product Name: Board Shape superpower Ceramic Capacitor

2. Model: CCG81-6

The capacitor is used for high power wireless sending set,tank circuit,coupling,filter and feed circuit of middle and high frequency electronic equipment.


We manufacture and export the following all models.Board Shape high frequency Ceramic Capacitor CCG81-6(3000PF, 12KV, 100kVA)

High power ceramic capacitor technical parameters:
1.Typical dissipation factor: ≤0.0008;
2.Volume resistivity: ≥10000MΩ;
3. Permissible variation of rated capacitance: K(+/-10%);
4.Temperature range: -40/+85;
5. Rated temperature: +85ºC;
6.Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.
