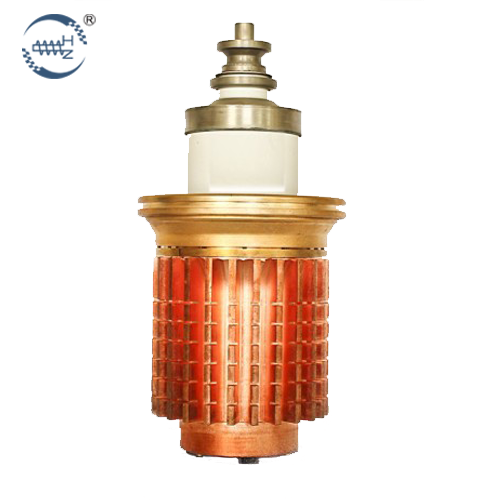

TH504C-350KW Electron Tube Power Tubes

Type:Vapor Cooling Triode
Output Power：234KW
Max. Working Frequency：30MHz
Weight:75KG
Description: TH504C-350KW Electron Tube Power Tubes
INQUIRY EMAIL

FU-912Z/TH504C is a direct thermal carbonization thorium-tungsten cathode amplifier vacuum tube , the metal-ceramic triode. Anode cooling is evaporative cooling, the maximum anode dissipation power 150KW, maximum operating frequency is 30MHz. The pipes are mainly used for oscillation in radio equipment, high frequency power amplifier, audio amplifier with. The tube can instead the French TH504C . This tube widly used in broadcasting communications,Hot sale in Turkey.

Glass-metal triodes (300KW)
Type			FU-912Z
Equivalent on abroad
Output power(KW)			350KW
Cathode	Cathode materials		Thoriated Tungsten
	Voltage(V)		17.5
	Current(A)		325
Main electric parameters	Amplification factor		80
	Inter-electrode Capacitances (PF) (Cathode earthed)	Filament-Grid	230
		Filament-Anode	2
		Anode-Grid	100
Maximum	Maximum anode dissipation (KW)		150
	Maximum grid dissipation (W)		4000
	Maximum anode DC voltage (KV)		15
	Maximum frequency (MHz)		30
Cooling			Z
Weight (kg)			75
Additional: The information here may be modified with the products variation. Cooling: F--Forced air cooling S--Water cooling Z--Vapor cooling
