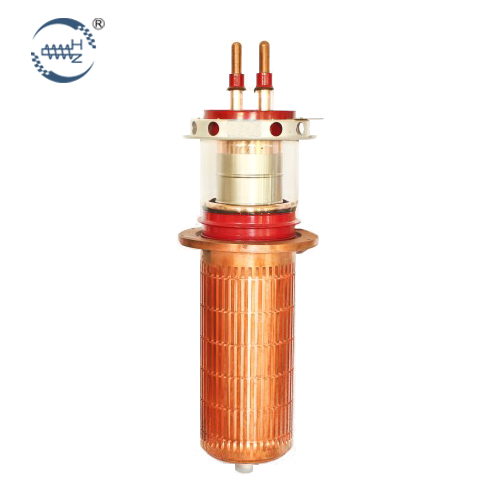

FD-912S-350KW Electron Tube Power Tubes

Type:Water Cooling Triode
Output Power：300KW
Max. Working Frequency：6MHz
Weight:35KG
Description: FD-912S-350KW Electron Tube Power Tubes
INQUIRY EMAIL

FD-912S is a direct thermal carbonization thorium-tungsten cathode, metallic glass transistor,vacuum tube amplifier

for water-cooled anode , the maximum anode dissipation power is 150KW, maximum operating frequency is 6MHz, the output power is 300KW. The pipes are mainly used in industrial high frequency heating equipment.

Ceramics Triode (5-350KW)
Type			FD-912s
Equivalent on abroad			TH504C
Output power(KW)			300
Cathode	Cathode materials		Thoriated Tungsten
	Voltage(V)		17.5
	Current(A)		425
Main electric parameters	Amplification factor		30
	Inter-electrode Capacitances (PF) (Cathode earthed)	Filament-Grid	212
		Filament-Anode	3.5
		Anode-Grid	122
Maximum	Maximum anode dissipation (KW)		150
	Maximum grid dissipation (kW)		7
	Maximum anode DC voltage (KV)		15
	Maximum frequency (MHz)		6
Cooling			S
Weight (kg)			35
Additional: The information here may be modified with the products variation. Cooling: F--Forced air cooling S--Water cooling Z--Vapor cooling
