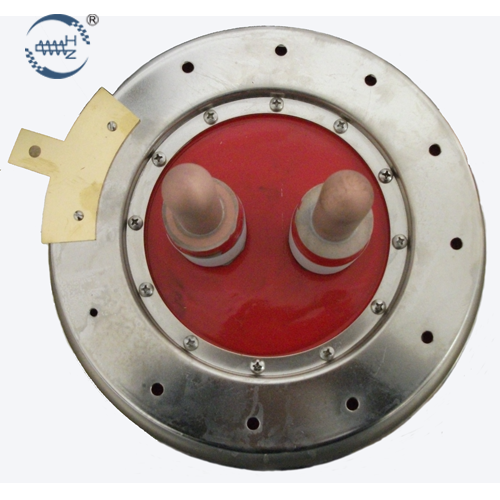

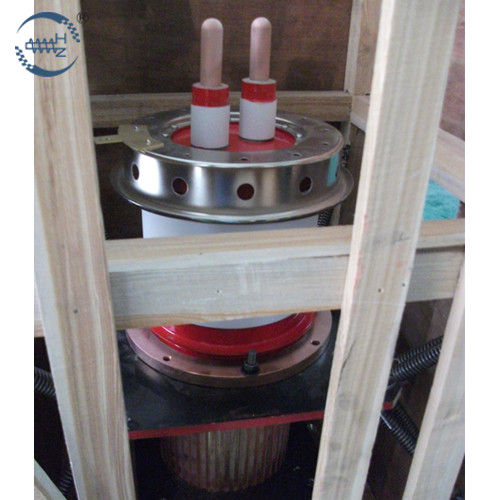

FD-954S 200KW Electron Tube Triode High power triode

Description: FD-954S 200KW Electron Tube Triode High power triode
INQUIRY EMAIL

FU954S is a thorium-tungsten cathode of the direct thermal carbonization, metal-ceramic triode,high power rf transistor

the anode cooled by water, the maximum anode dissipation power is 120KW output power is 200KW, the tube is mainly used for industrial high frequency heating equipment.

200KW <a href=https://www.hertzec.com/Electron-Tube.html target='_blank'>Electron Tube</a> FU-954S high power rf transistor

Ceramics triode (30-600KW)
Type			FU-954S
Equivalent on abroad
Output power(KW)			200
Cathode	Cathode materials		Tungsten
	Voltage(V)		12
	Current(A)		420
Main electric parameters	Amplification factor		30
	Inter-electrode Capacitances (PF) (Cathode earthed)	Filament-Grid	225
		Filament-Anode	8
		Anode-Grid	120
Maximum	Maximum anode dissipation (KW)		120
	Maximum grid dissipation (W)		5500
	Maximum anode DC voltage (KV)		15
	Maximum frequency (MHz)		30
Cooling			S
Weight (kg)			30
Additional: The information here may be modified with the products variation. Cooling: F--Forced air cooling S--Water cooling Z--Vapor cooling
